JA Solar

https://www.autoconsumosolar.es/web/image/product.template/23352/image_1920?unique=422ddfe

186,39 € 186.39000000000001 EUR 186,39 €

186,39 €

Not Available For Sale

This combination does not exist.

Contact Us

Términos y condiciones
Garantía de devolución de 30 días
Envío: 2-3 días laborales

Descripción de Producto

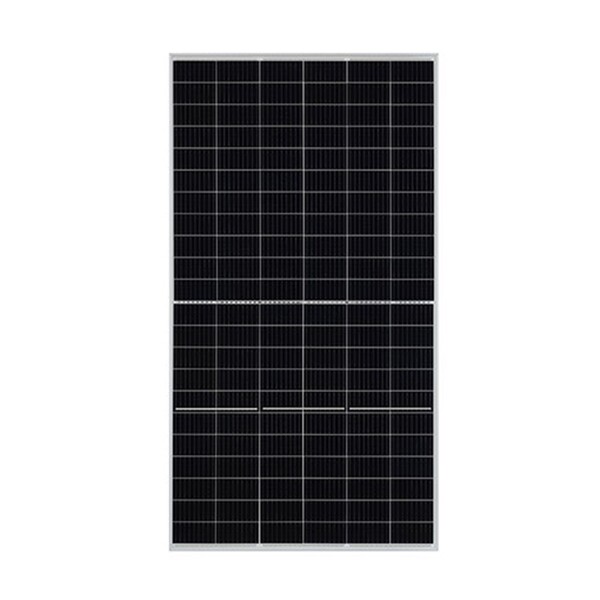

Including cable (ca. 120 cm) MC4 EVO2 connector system Stable anodized alu-frame Thermally pre-stressed solar glass High-performance solar cells Version with 11 busbars Glass thickness 3.2 mm
Battery Connection ac
Temperature Coefficient Isc 0.045
Temperature Coefficient Pmpp -0.35
Temperature Coefficient Uoc -0.275
Current Shortcircuit isc 14.0
Nominal Current Impedance 13.11
Panel Cells Accross 6
Panel Cells Accross Height 22
Power Nominal Pmax 505.0
Panel Cell Depth 182.0
Panel Cell Type mono
Panel Connector Type mc4evo
Panel Frame Type std
Power Tolerance +5 Wp
Open Circuit Current Uoc 45,72
System Maximum Current 1500
Nominal Current Umpp 38,53
Product Manufacturer JA Solar
Factory Reference JAM66S30-505/MR
Certification 1 IEC/TÜV
Certification 2 Protection Class 2
Backsheet Color white
Frame Color silver
Panel Cell Length 83.0
Panel Cable Length 120.0
Length 2093.0
Height 30.0
Depth 1134.0
Palets per Contener 22
Units per Contener 792
Units per Palets 36
Product Warranty 12
Product Performance Guaranteed 25
